In the continuous drive friction welding, the two ends of the welded workpiece are fixed in the rotating jig and the moving fixture respectively. After the workpiece is clamped, the movable fixture on the sliding table moves to the rotating end along with the sliding table. After moving to a certain distance, the rotating end work begins to rotate, and the workpiece begins to be heated by friction. Thereafter, different control can be carried out, such as time control or friction reduction (also called friction deformation) control. When the set value is reached, the rotation stops and the top forging begins, usually exerts a larger upsetting force and maintains a period of time. Then, the rotary fixture is loosened and the sliding table retreats. When the sliding table is back to the original position, the movable fixture is loosened and the workpiece is removed. At this point, the welding process is finished.

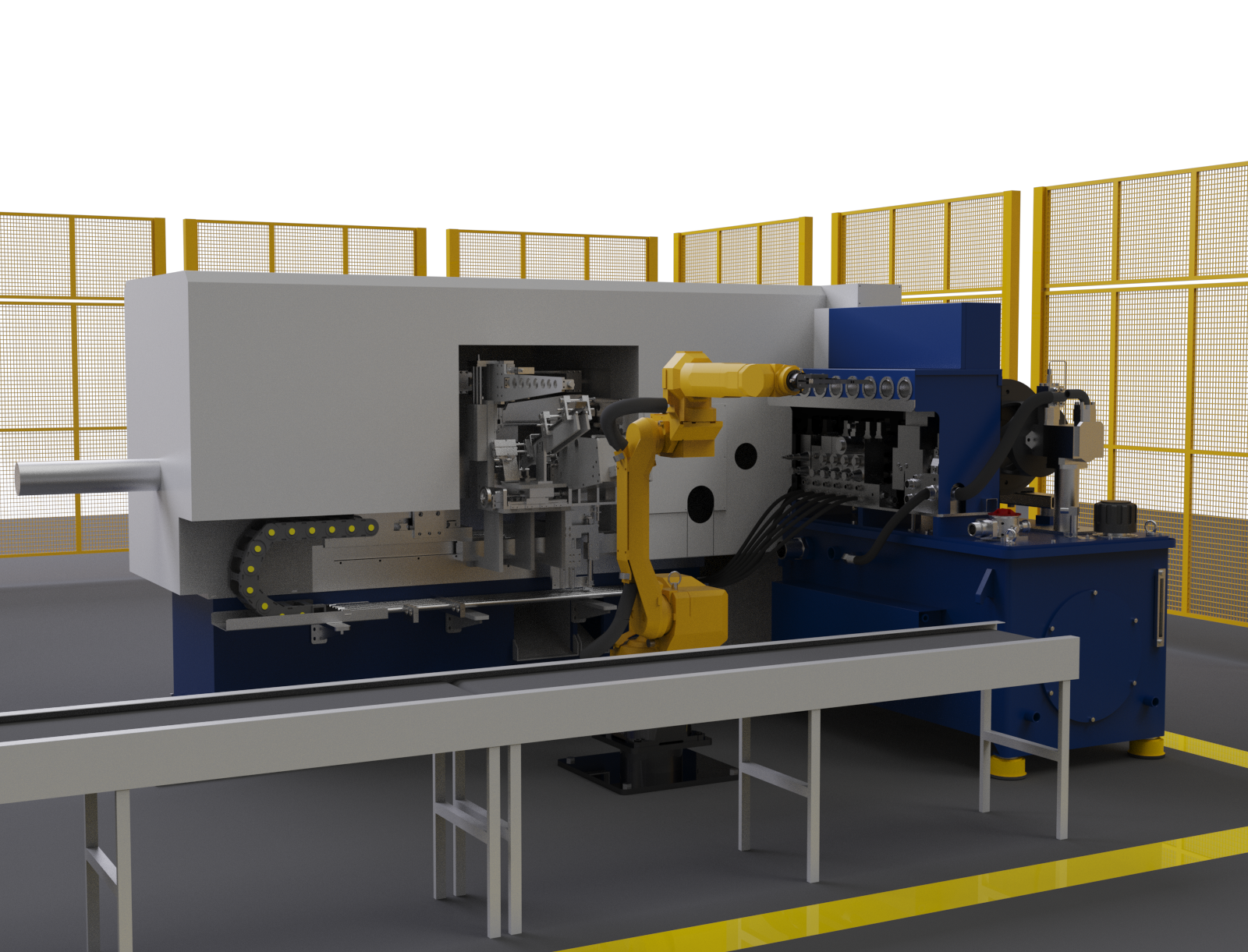

The feeding and unloading device of machine tool is an integral part of the automatic machine tool. After the semi-automatic machine tool is equipped with the feeding and unloading device, the processing cycle can be continuously and automatically carried out and become an automatic machine tool. The feeding and unloading device of machine tools is used in semi-automatic machine tools with high efficiency, short maneuvering time and frequent workpiece loading and unloading, which can significantly improve production efficiency and reduce manual labor. The feeding and unloading device of machine tool is also an indispensable auxiliary device to form an automatic production line.
This equipment is used to preform the metal bar into the shape of garlic by electric upsetting, and then forge it into a press to form the valve blank. The whole equipment can be divided into four parts from the angle of function: six electric upsetting machine, one feeding box, two handling robot, one press and a set of general control system.
The electrical upsetting process is a low voltage and large current between a long and elongated alloy workpiece between the conducting clamp cylinder and the anvil cylinder, so that the workpiece is heated to the plastic molding temperature by its own resistance, and it is upsetting locally under the impetus of the hydraulic system.
